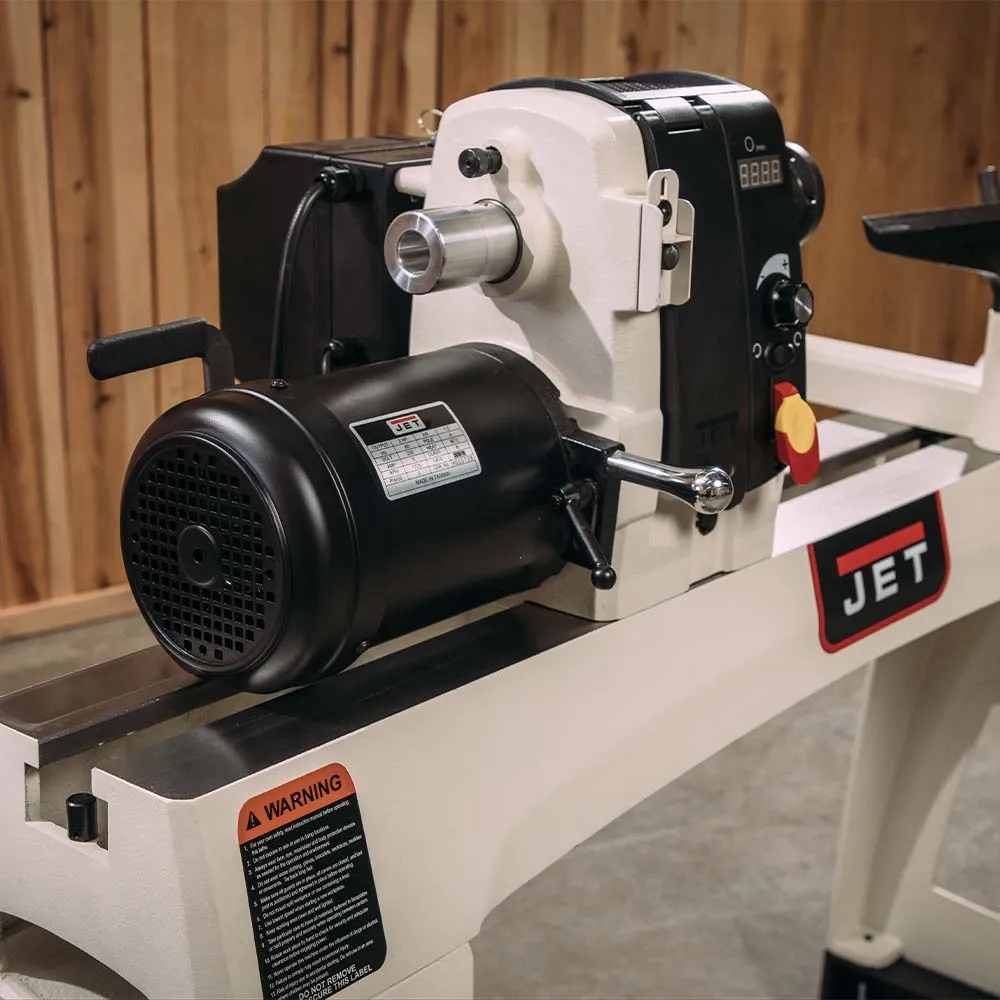

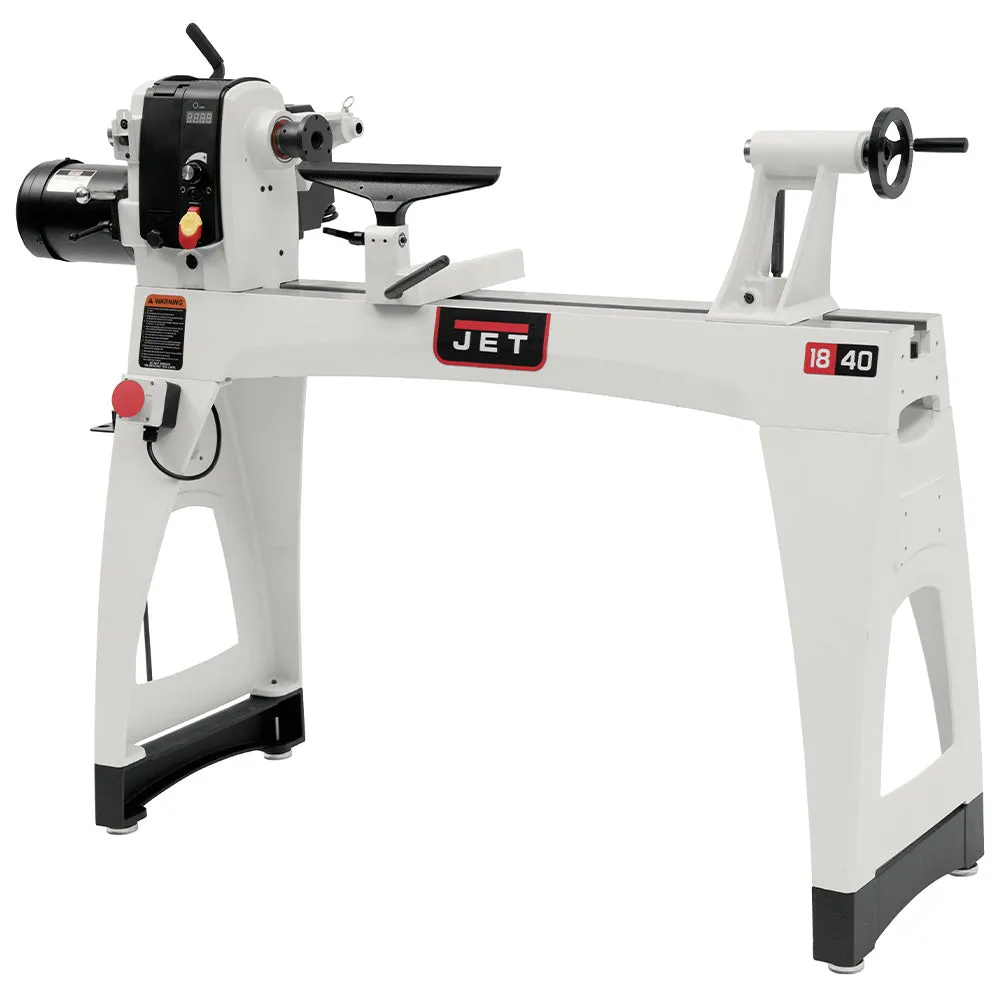

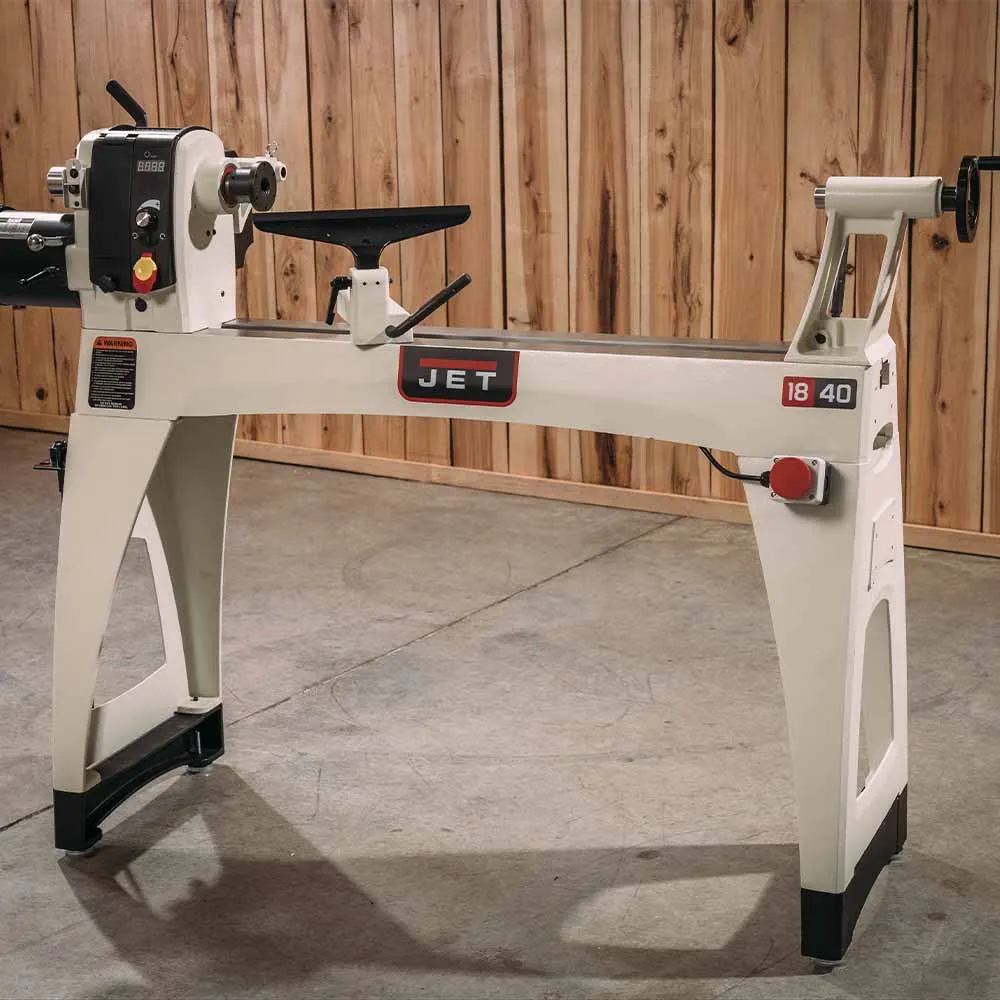

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed and pivots 360º with seven positive locking positions. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort.
JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
[TABS]
Features
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Convenient leg-mounted tool holder
- Conveniently located digital readout
- E-drive Inverter features a built in EMI filter

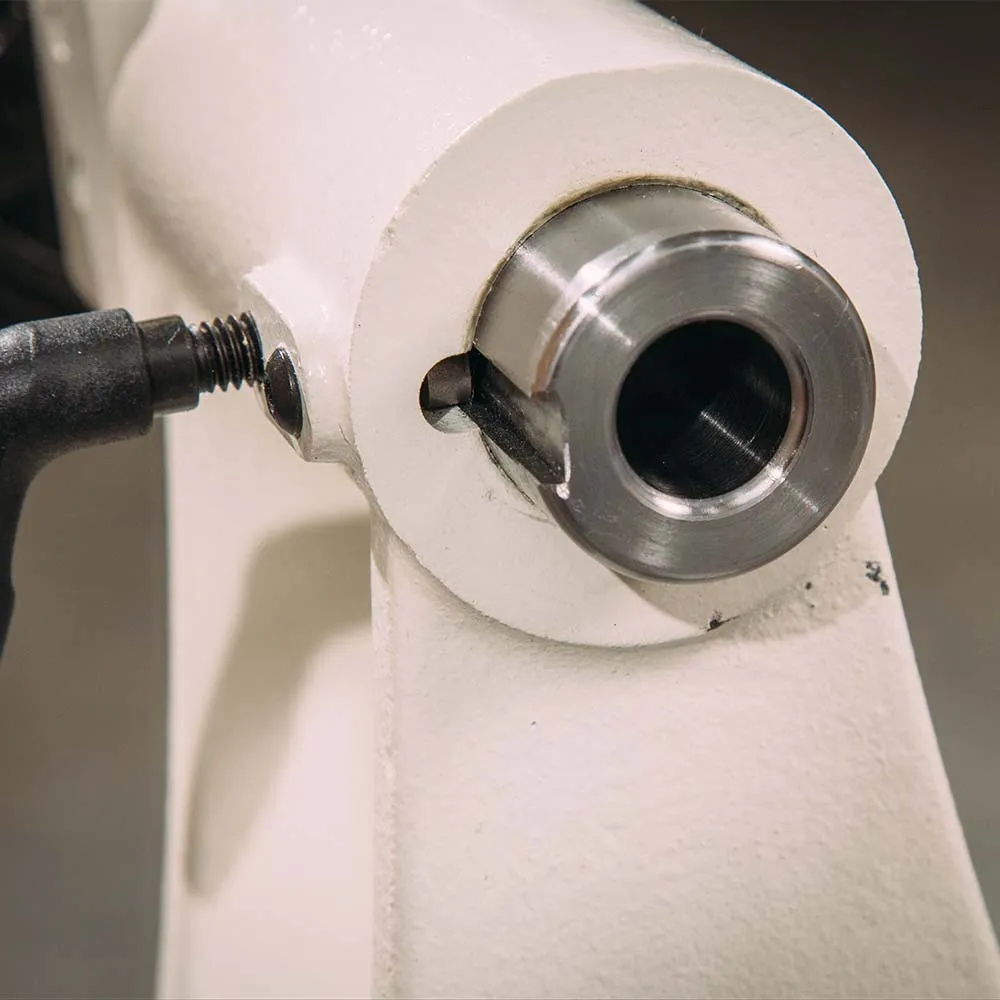

- Extended spindle nose houses dual headstock spindle bearings
- Remote emergency stop button can be situated along the lathe bed
- Spindle lock latch frees up both hands
Specs
Bed Construction: Cast Iron
Gross Weight: 484 lbs.
Motor Amps: 5
Motor: 2hp, 3ph
Motor Phase: 3
Motor Voltage: 230V
Net Weight: 418 lbs.
Number of Indexing Positions: 36
Overall Dimensions (L x W x H): 73" X 53-1/2" X 20"
Prewired Voltage: 230V
Recommended Circuit Size (Amps.): 20
Shipping Dimensions (L x W x H): 57" x 31" x 28"
Spindle Bore: 5/8"
Spindle Speeds: 40-3200
Swing Over Bed: 18-1/2"
Weight: 418 lbs.
Wiring Remarks: 230v, 1ph input only
